Histology

Leica CM1900 & CM1950

Cryostat with built-in rotary microtome

Read More

Leica RM2125 RTS

Rotary microtome

Read More

Microm HM 650 V

Microtome with vibrating blade

Read More

Leica EM UC7

Ultramicrotome

Read More

Cryostats with built-in rotary microtome

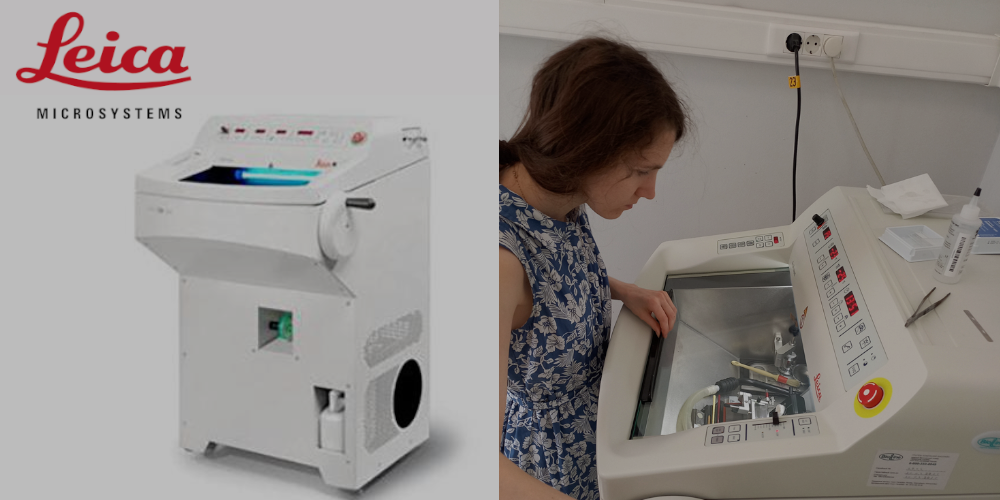

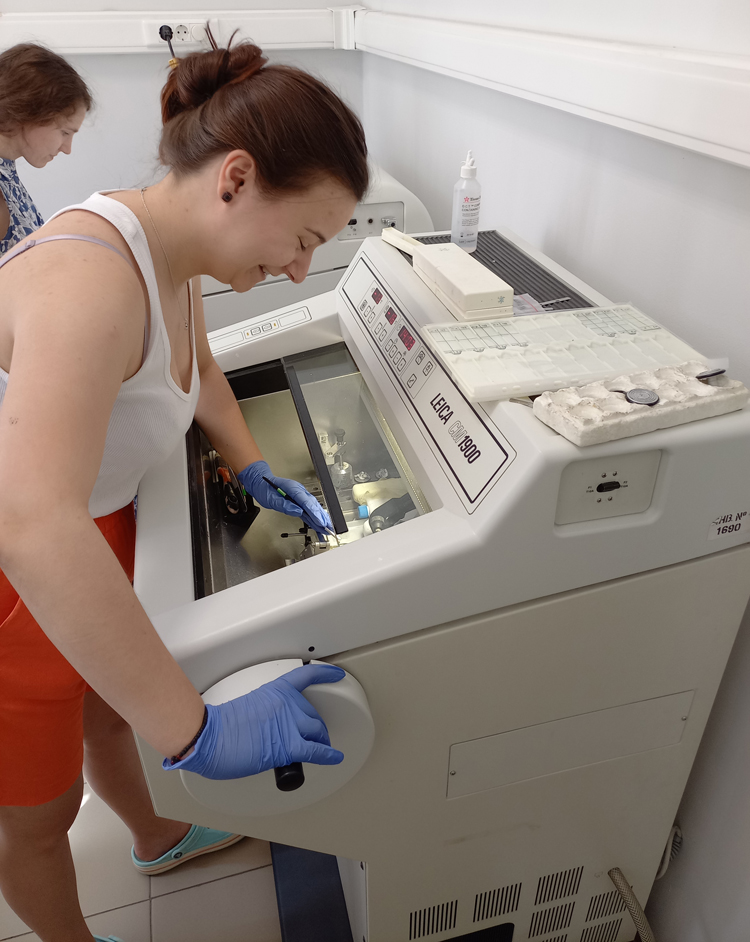

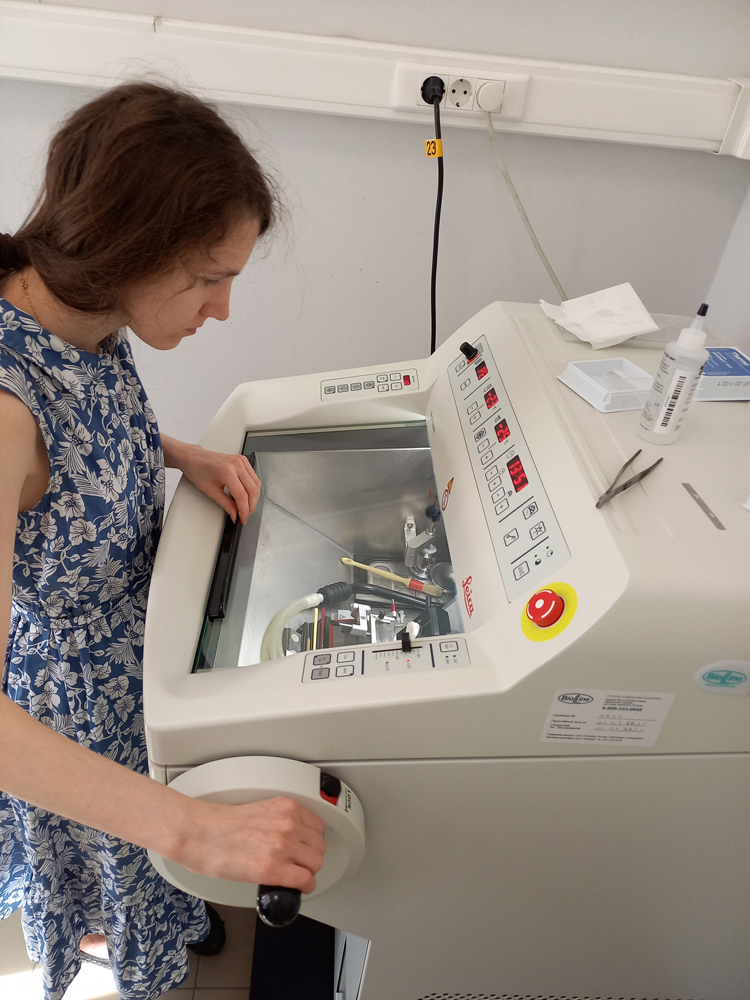

Leica CM1950 & CM1900

Leica CM1950	Leica CM1900
		Section thickness range - 1 to 100 μm Trimming thickness range - set at 10 to 40 μm or 1 to 600 μm Horizontal specimen feed - 25 mm + 1 mm Vertical specimen stroke - 59 mm ± 0.5 mm Maximum specimen size - 50 x 80 mm Specimen orientation - ±8° (x-, y-axis) Coarse feed slow: - 300 μm/s; fast: 900 μm/s Temperature range 0°C to -35 °C Cooling time to -25°C - approx. 5 h at 20 °C

Rotary microtome

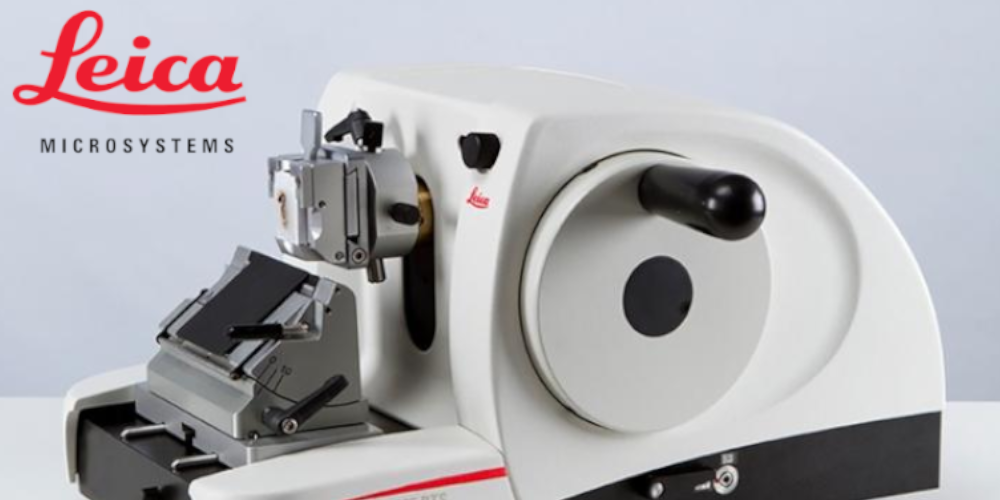

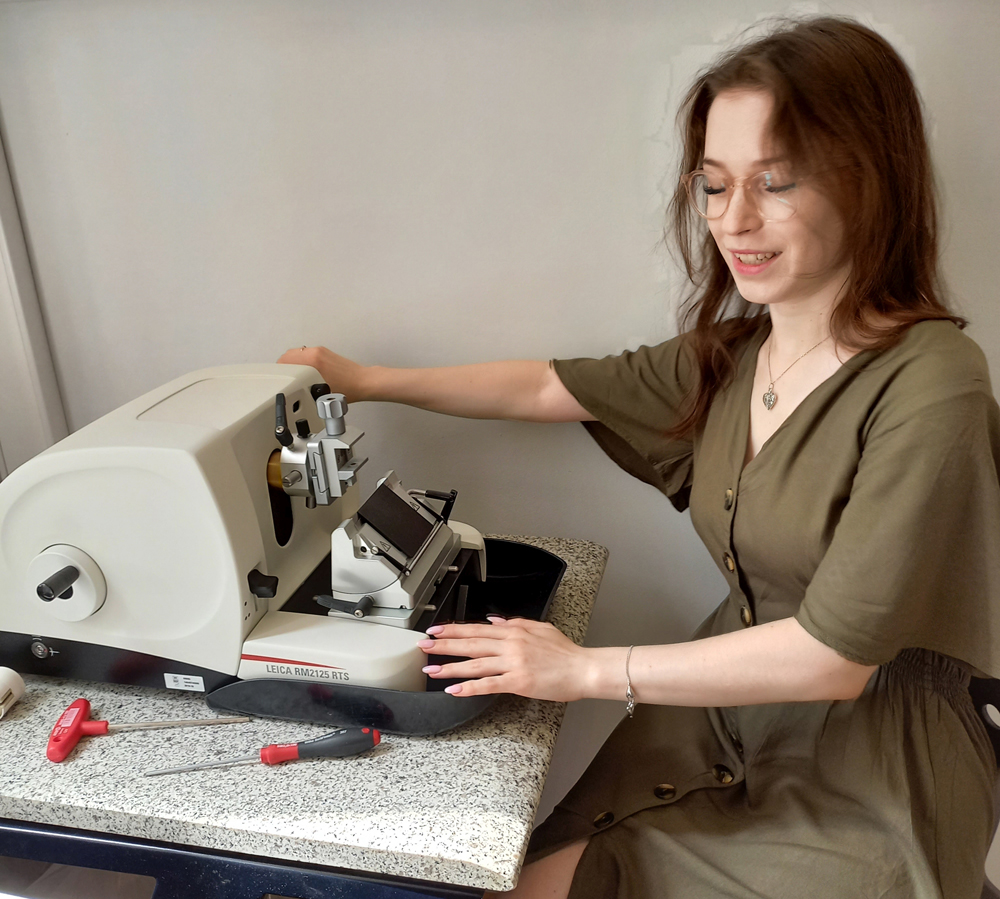

Leica RM2125 RTS

The rotary microtome allows cutting sections with adjustable thickness from 0.5 to 500 micrometers from solid specimens and specimens embedded in a paraffin block.

Microtome with vibrating blade

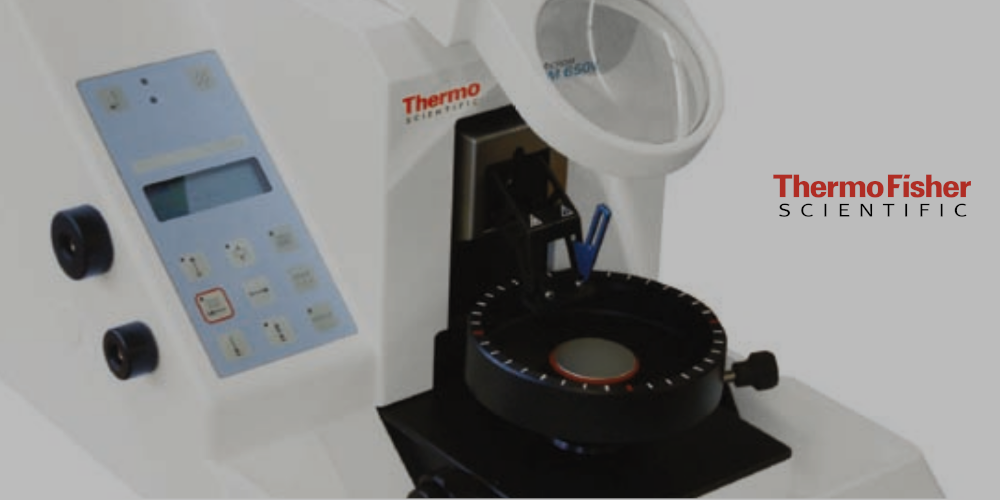

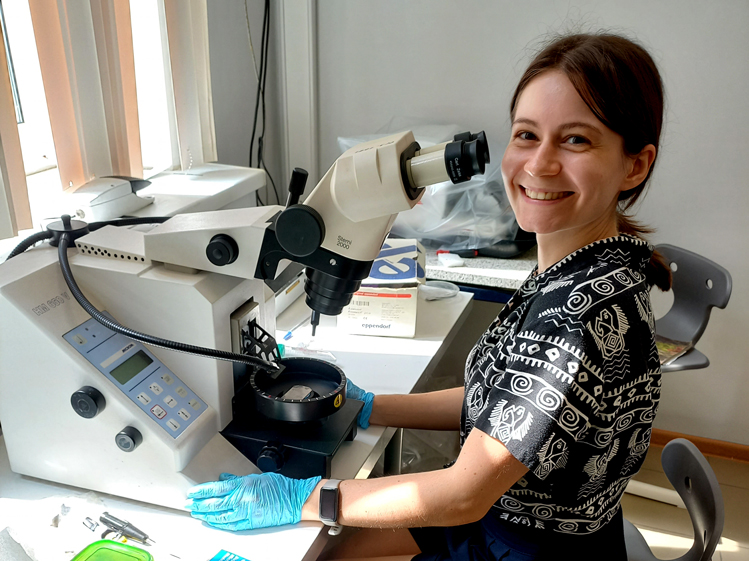

Microm HM 650 V (Thermo Scientific)

The Microm HM 650 V microtome is a highly efficient microtome with a horizontally oscillating blade for semi manual as well as fully automated sectioning of mainly neuronal tissue.

Features: Precise vibrating system produces minimal deflection, ensuring optimal specimen integrity Plug and play system does not require time-consuming deflection adjustments for each different sample type Sectioning and operational parameters can be stored and recalled Micrometer and vibration systems enclosed in an ergonomically designed housing Three modes of operation: semi-manual, single and continuous Specimen Orientation - 8° universal Trim Section Resolution - 1 to 1500μm Sectioning Range - 1 to 1500μm Specimen Size -    45 x 45 mm

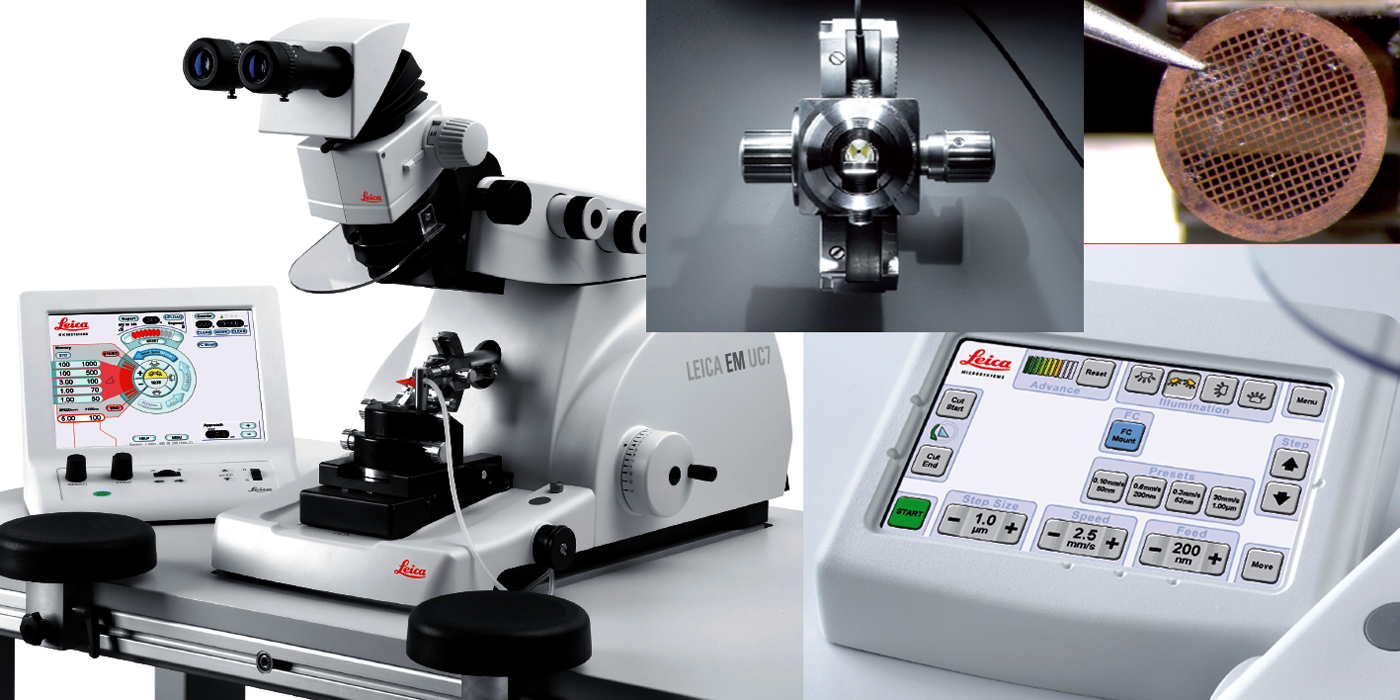

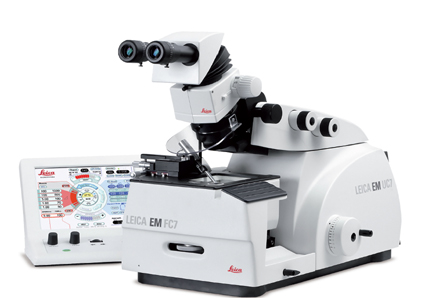

Leica EM UC7, high quality ultramicrotome for precise room temperature sectioning

The Ultratome provides high quality sectioning of specimens for light, electron, and atomic force microscopy examination. Leica EM UC7 FC7 Brochure

Eucentric movement of the stereomicroscope observation system with patented designated positions for specimen approach, for glass and diamond knives.

In addition to the standard LED illumination for top light and backlight and transmitted light, the LED spot illumination offers a focused light beam to enhance observation, e.g., for cleaning the knife edge and during cryo-sectioning.

The user can walk away from the instrument during trimming; the combination of the fully motorized knife stage and patented AutoTrim function completes and then stops the trim automatically.

Easy-to-learn, fast operation via touchscreen control and displayed hints.

Data transfer for reporting user, specimen, knife and storage parameters provides an electronic, paper-free log file.

The operator recognition system makes it easy for multiple users to use the same instrument. Up to 100 different user/specimen/ knife profiles can be set.

Technical Data

Magnification - M80: 9.6x-77x, S6E: 10x -64x

Ergo-Wedge - 5°- 25°

Eucentric movement of the stereo carrier -  +5°/ -8°

Built in control of antistatic device

Top-light LED brightness controllable

Back-light LED brightness controllable

Transillumination LED brightness controllable

Spot-light - LED

Cutting transmission vibration decoupled gravity stroke

Specimen advance - 200μm

Reserve warning - 20μm

Segment arc - 360° rotatable specimen

eucentric movement - +/-22°

Knife block - 360° rotatable

self locking - yes

graduation -  +/-30° graduation

clearance angle adjustment - from -2° to 15° with 1° scale

Knife holder for 6-12mm knives

Coarse knife-movements N-S - 10 mm stepping motor; E-W - 25mm stepping motor

Cutting window - 0.2 -14 mm adjustable

Cutting speed - 0.05 -100 mm/s wheel controlled

Section thickness - 0-15000nm wheel controlled

FEED/SPEED storage (combined) - 5 advanced controller / 4 basic controller

Return speeds - 10, 30, 50mm/s

Step control - 0.1 -15 μm steps
